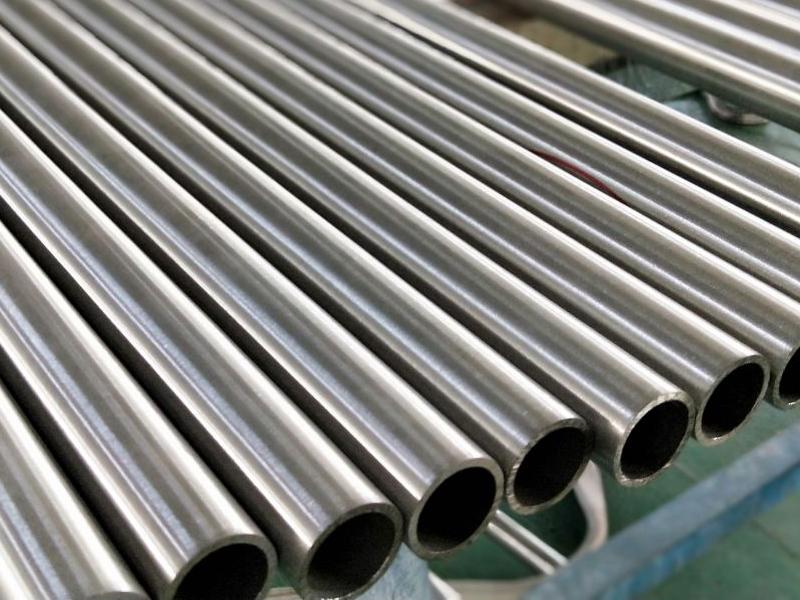

ASTM B167 UNS N06600 and Alloy 600 Seamless Pipe supplier in India
Sanjivini Steel Centre is a leading manufacturer, distributor, exporter, and retailer for Inconel 600 Nickel Alloy Pipe in India. These pipes are less expensive than seamless ones, but if the longitudinal seam is not well managed, it might cause intergranular corrosion. When a client wants the highest level of corrosion resistance and the ability to withstand higher pressures, Inconel 600 seamless pipe is the best option. To ensure the best quality and value, only buy Inconel 600 pipe from reliable Indian suppliers.
The fact that Inconel 600 is such a versatile alloy is preferred by many industries. As a result, the alloy is utilized in many important industries in a variety of forms, such as the well-known Inconel 600 Pipe. These pipes might have a seamless design or be welded together. The use of both has advantages. For example, Inconel 600 welded pipes are preferred in situations where their economics are crucial.
67 UNS N06600 pipes are provided. This alloy may be used at temperatures as high as 2000 °F and as low as cryogenic temperatures. Their ability to withstand heat is another feature that draws in a number of enterprises. Caustic-alkali manufacturing is one such industry. Sulfur compounds are present; however, ASTM B167 UNS N06600 pipes function well and do not deteriorate. Unlike Inconel 600, elemental sulfur is often more vulnerable to localized corrosion attack when it is continuously in contact with mild steel.
The production of elemental sulfur is common in sour wells. Oxygen pollution causes hydrogen sulfide, which is then converted into sulfur through an oxidation process. Sulfur precipitates and deposits on the pipe walls are common in sour wells. Ordinary steel pipes break because of too much sulfur buildup. However, employing high-chromium alloys, such as Alloy 600 Pipe, can slow down the rate of corrosion. Sanjivini Steel Centre has an excellent track record as an Indian supplier of superior Inconel 600 pipe.
Numerous industries and applications use our Inconel 600 nickel alloy Pipe. Here are a handful of them:
Petrochemical Industry
Oil and Gas Industry
Chemical Industry
Power Plant Industry
Energy Industry
Pharmaceuticals Industry
Pulp & Paper Industry
Food Processing Industry
Aerospace Industry
Refining Industry
Inconel 600 Pipe International Specification | ASTM B167, ASTM B829, ASTM B775, ASTM B517, ASTM B516, ASTM B163, ASTM B751, and AMS 5580 BS 3072-3076request) (NA14) DIN 17742, DIN 17754 DIN 17750, WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe |
Standard Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
Inconel 600 Seamless Pipe Size |
|
600 Inconel Welded Pipe Size |
|
Inconel 600 UNS N06600 EFW Pipe Size |
|
Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS Inconel UNS No 6600 Pipe supplier |
Alloy Inconel 600 Pipe manufacturing techniques | Seamless / ERW / EFW/ Welded / Fabricated / CDW/ LSAW/ Seam-Welded / Redrawn |
Origin of Inconel 6600 pipe material | India, Europe, Korea, Japan, Germany |
Alloy 600 Inconel Pipe End Types |
|
Form | Round, Square, Rectangular, Hydraulic Pipe supplier |
Inconel 600 Alloy Pipe Length | Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded |
2.4816 Inconel 600 Pipe Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
Inconel Alloy 600 Pipe Packing |
|
Inconel ASME SB 167 UNS N06600 Pipe Value Added Services | Cut to size, thread, and groove |
Port | Mumbai, India |
Stocking distributor of leading Inconel 600 Pipe manufacturers |
|
Inconel ASME SB 167 UNS N06600 Pipe Dimensional Specification | ANSI/ ASME B36.10, B36.19, B2.1 |
Marking on Inconel 2.4816 Alloy 600 Pipe |
|
Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
Inconel 600 Pipe | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
Inconel 600 Pipe | Psi – 95,000 , MPa -655 | Psi – 45,000 , MPa – 310 | 40 | – | – |
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
BS | En | No | AFNOR | ||||
Inconel 600 Pipe | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
Inconel 600 Pipe | Psi – 95,000 , MPa -655 | Psi – 45,000 , MPa – 310 | 40 |
NOMINAL | O.D. INCHES | 10S | 10 | 40S & STD | 40 | 80S & E.H. | 80 | 160 |
---|---|---|---|---|---|---|---|---|
1/8 | .405 | .049 | .049 | .068 | .068 | .095 | .095 | |
1/4 | .540 | .065 | .065 | .088 | .088 | .119 | .119 | |
3/8 | .675 | .065 | .065 | .091 | .091 | .126 | .126 | |
1/2 | .840 | .083 | .083 | .109 | .109 | .147 | .147 | .187 |
3/4 | 1.050 | .083 | .083 | .113 | .113 | .154 | .154 | .218 |
1 | 1.315 | .109 | .109 | .133 | .133 | .179 | .179 | .250 |
1 1/4 | 1.660 | .109 | .109 | .140 | .140 | .191 | .191 | .250 |
1 1/2 | 1.900 | .109 | .109 | .145 | .145 | .200 | .200 | .281 |
2 | 2.375 | .109 | .109 | .154 | .154 | .218 | .218 | .343 |
2 1/2 | 2.875 | .120 | .120 | .203 | .203 | .276 | .276 | .375 |
3 | 3.500 | .120 | .120 | .216 | .216 | .300 | .300 | .437 |
3 1/2 | 4.000 | .120 | .120 | .226 | .226 | .318 | .318 | |
4 | 4.500 | .120 | .120 | .237 | .237 | .337 | .337 | .531 |
4 1/2 | 5.000 | .247 | .355 | |||||
5 | 5.563 | .134 | .134 | .258 | .258 | .375 | .375 | .625 |
6 | 6.625 | .134 | .134 | .280 | .280 | .432 | .432 | .718 |
7 | 7.625 | .301 | .500 | |||||
8 | 8.625 | .148 | .148 | .322 | .322 | .500 | .500 | .906 |
9 | 9.625 | .342 | .500 | |||||
10 | 10.750 | .165 | .165 | .365 | .365 | .500 | .593 | 1.125 |
11 | 11.750 | .375 | .500 | |||||
12 | 12.750 | .180 | .180 | .375 | .406 | .500 | .687 | 1.312 |
14 | 14.000 | .188 | .250 | .375 | .437 | .500 | .750 | 1.406 |
16 | 16.000 | .188 | .250 | .375 | .500 | .500 | .843 | 1.593 |
18 | 18.000 | .188 | .250 | .375 | .562 | .500 | .937 | 1.781 |
NPS | Outside Diameter (OD) | Wall Thickness (WT) | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2" | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4" | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1" | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4" | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2" | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2" | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2" | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3" | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4" | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6" | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8" | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10" | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12" | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14" | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 | 30 STD | 93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 | 40 XHY | 123.289 | 82.770 | |||
18" | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20" | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24" | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30" | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36" | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 | 17.475 | 386.487 | 259.467 | ||||
0.750 | 19.050 | 420.576 | 282.353 | ||||
42" | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48" | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Selected wall tolerance: ±10%
OUTSIDE DIAMETER (OD) AND WALL THICKNESS: 1.59 x 0.36 mm
INCONEL 600 | MAXIMUM INTERNAL PRESSURE, KSI | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
100°F | 200°F | 300°F | 400°F | 500°F | 600°F | 700°F | COMMENTS | |||
N06600 :1 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | B167 OD>5" and hotworked | ||
N06600 :2 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | B167 OD<=5" and hotworked + OD>5" and coldworked | ||
N06600 :3 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | B167 OD<=5" and coldworked |
Selected wall tolerance: ±10%
OUTSIDE DIAMETER AND WALL THICKNESS: 6 x 1mm
INCONEL 600 | MAXIMUM INTERNAL PRESSURE, KSI | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
100°F | 200°F | 300°F | 400°F | 500°F | 600°F | 700°F | COMMENTS | |||
N06600 :1 | 392 | 392 | 392 | 392 | 392 | 392 | 392 | B167 OD>5" and hotworked | ||
N06600 :2 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | B167 OD<=5" and hotworked + OD>5" and coldworked | ||
N06600 :3 | 547 | 547 | 547 | 547 | 547 | 547 | 547 | B167 OD<=5" and coldworked |
Selected wall tolerance: ±10%
OUTSIDE DIAMETER AND WALL THICKNESS (MM): 8 x 1
INCONEL 600 | MAXIMUM INTERNAL PRESSURE, KSI | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
100°F | 200°F | 300°F | 400°F | 500°F | 600°F | 700°F | COMMENTS | |||
N06600 :1 | 284 | 284 | 284 | 284 | 284 | 284 | 284 | B167 OD>5" and hotworked | ||
N06600 :2 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | B167 OD<=5" and hotworked + OD>5" and coldworked | ||
N06600 :3 | 397 | 397 | 397 | 397 | 397 | 397 | 397 | B167 OD<=5" and coldworked |
NOMINAL SIZE [INCHES] | OUTSIDE DIAMETER (OD) [INCHES] | OUTSIDE DIAMETER (OD) [MM] | WALL THICKNESS [INCHES] | WALL THICKNESS [MM] | WEIGHT [LB/FT] | WEIGHT [KG/M] |
---|---|---|---|---|---|---|
1/8" NPS 6 | 0.41 | 10.3 | 0.068 | 1.73 | 0.24 | 0.37 |
1/4" NPS 8 | 0.54 | 13.7 | 0.088 | 2.24 | 0.42 | 0.63 |
3/8" NPS 10 | 0.68 | 17.1 | 0.091 | 2.31 | 0.57 | 0.84 |
1/2" NPS 15 | 0.84 | 21.3 | 0.109 | 2.77 | 0.85 | 1.27 |
3/4" NPS 20 | 1.05 | 26.7 | 0.113 | 2.87 | 1.13 | 1.69 |
1" NPS 25 | 1.32 | 33.4 | 0.133 | 3.38 | 1.68 | 2.5 |
1 1/4" NPS 32 | 1.66 | 42.2 | 0.14 | 3.56 | 2.27 | 3.39 |
1 1/2" NPS 40 | 1.9 | 48.3 | 0.145 | 3.68 | 2.72 | 4.05 |
2" NPS 50 | 2.375 | 60.3 | 0.154 | 3.91 | 3.65 | 5.44 |
2 1/2" NPS 65 | 2.875 | 73.0 | 0.203 | 5.16 | 5.79 | 8.63 |
3" NPS 80 | 3.5 | 88.9 | 0.216 | 5.49 | 7.58 | 11.29 |
3 1/2" NPS 90 | 4.0 | 101.6 | 0.226 | 5.74 | 9.11 | 13.57 |
4" NPS 100 | 4.5 | 114.3 | 0.237 | 6.02 | 10.79 | 16.07 |
5" NPS 125 | 5.563 | 141.3 | 0.258 | 6.55 | 14.62 | 21.77 |
6" NPS 150 | 6.625 | 168.3 | 0.28 | 7.11 | 18.97 | 28.26 |
8" NPS 200 | 8.625 | 219.1 | 0.322 | 8.18 | 28.55 | 42.55 |
10" NPS 250 | 10.75 | 273.0 | 0.365 | 9.27 | 40.48 | 60.31 |
12" NPS 300 | 12.75 | 323.8 | 0.406 | 10.31 | 53.52 | 79.73 |
14" NPS 350 | 14.0 | 355.6 | 0.437 | 11.13 | 54.57 | 94.55 |
16" NPS 400 | 16.0 | 406.4 | 0.5 | 12.7 | 82.77 | 123.3 |
18" NPS 450 | 18.0 | 457.0 | 0.562 | 14.27 | 104.67 | 155.8 |
20" NPS 500 | 20.0 | 508.0 | 0.594 | 15.09 | 123.11 | 183.42 |
24" NPS 600 | 24.0 | 610.0 | 0.688 | 17.48 | 171.29 | 255.41 |
32" NPS 800 | 32.0 | 813.0 | 0.688 | 17.48 | 230.08 | 342.91 |
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
FOR MORE DETAIL OR ANY BUSINESS ENQUIRY PLEASE FILL TO FREE CONTACT US
24/7 Support for Your Business
We specialize in exporting a premium selection of Stainless Steel, Carbon Steel, High Nickel Alloy, along with Pipes, Tubes, Fittings, Flanges, Fasteners, and more.
© 2024 SANJIVINI STEEL CENTER Powered By YUGASMI
About Us
We specialize in exporting a premium selection of Stainless Steel, Carbon Steel, High Nickel Alloy, along with Pipes, Tubes, Fittings, Flanges, Fasteners, and more.
© 2024 SANJIVINI STEEL CENTER Powered By YUGASMI
