LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA
LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA

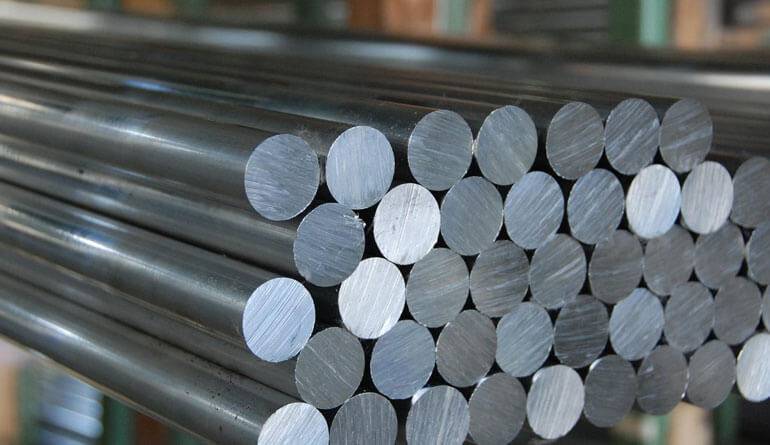

Sanjivini Steel Centre is a leading supplier, manufacturer, and exporter of stainless steel 304H round bars in India. The 304H Stainless Steel Round Bar is a high-carbon variant of the popular 304 stainless steel. Known for its widespread use, 304 stainless steel gains added toughness in the 304H version due to the higher carbon content. Micro Metals, another prominent manufacturer, offers various types of ASTM A276 SS 304H rods for a range of applications.
This material comprises 18% chromium and 8% nickel, along with manganese, carbon, silicon, sulfur, and phosphorus. The composition provides the bars with impressive mechanical properties, including a minimum tensile strength of 515 MPa and a minimum yield strength of 205 MPa. Additionally, the 304H stainless steel exhibits good general corrosion resistance.
The UNS S30409 hex bar is particularly suited for high-strength applications, such as constructing metallic frames and in high-temperature environments like heat exchangers and boiler frames. It is also used in the production of fasteners. The DIN 1.4301 flat bar is employed to create metallic lattices capable of supporting high loads.
Various applications for this material exist, depending on specific requirements and customer preferences. For more information and pricing on ASTM A479 SS 304H Square Bars and other types, please feel free to contact us.
Details for Round Bars Made of 304H Stainless Steel. Please use the contact button for a quick quote if any specifications are not listed here.
| Grade | Stainless Steel 304H (UNS S30409) |
|---|---|
| Specification | ASTM A276, ASTM A479 |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 2–100mm |
| Width: 10 to 500mm | |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |
| Square bar size | 4 to 100mm |
| Section | 3.0 to 12.0 mm thickness |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75 mm section; 5 to 6 mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3*20*2~12*100*100 mm |
| Form | Rings, Profiles, Hollow, Flat Bar, Square, Round, Rectangle, Triangle, Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Channel Bar, Blocks, Round Rod, Threaded, Billet, Ingot, I/H Bar, Forging, etc. |
| Technique | Cold Drawn, Rod, Hot Rolled, Cold Rolled, Forged Round Bar |
| Condition | annealed, Hardened & tempered |
| Surface | Cold Drawn, Polished, Bright, Hot Rolled Pickled, Sand Blasting Finished,Hairline |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 304H | S30409 | 1.4301 |
| Element | SS 304H |
| C | 0.10 max |
| Ni | 8.0 – 10.5 |
| P | 0.045 max. |
| Mn | 2.00 max |
| Si | 0.75 max |
| S | 0.03 max. |
| Cr | 18.0 – 20.0 |
| Element | SS 304H |
| Melting Point | 1400 ℃ |
| Density | 8 |
| Hardness (Brinell) | 201 |
| Yield Strength (0.2%Offset) | 205 |
| Tensile Strength | 515 |
| Elongation | 40 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm). 304H Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm.
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
robust quality 304H SS round bar suppliers offer various shapes such as Square Bar, Round Bar, Flat Bar, Hexagonal Bar, Hollow Bar & Channels
RT | Rough turned/peeled | P&T | Peeled and turned |
SRE | Slit rolled edge | BD | Bright drawn |
P | Polished | CD | Cold drawn |
HRAP | Hot rolled annealed and pickled | CF | Cold finished |
HF | Hot finished | CG | Centreless ground |
PR | Peeled and reeled | ST | Smooth turned |
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
