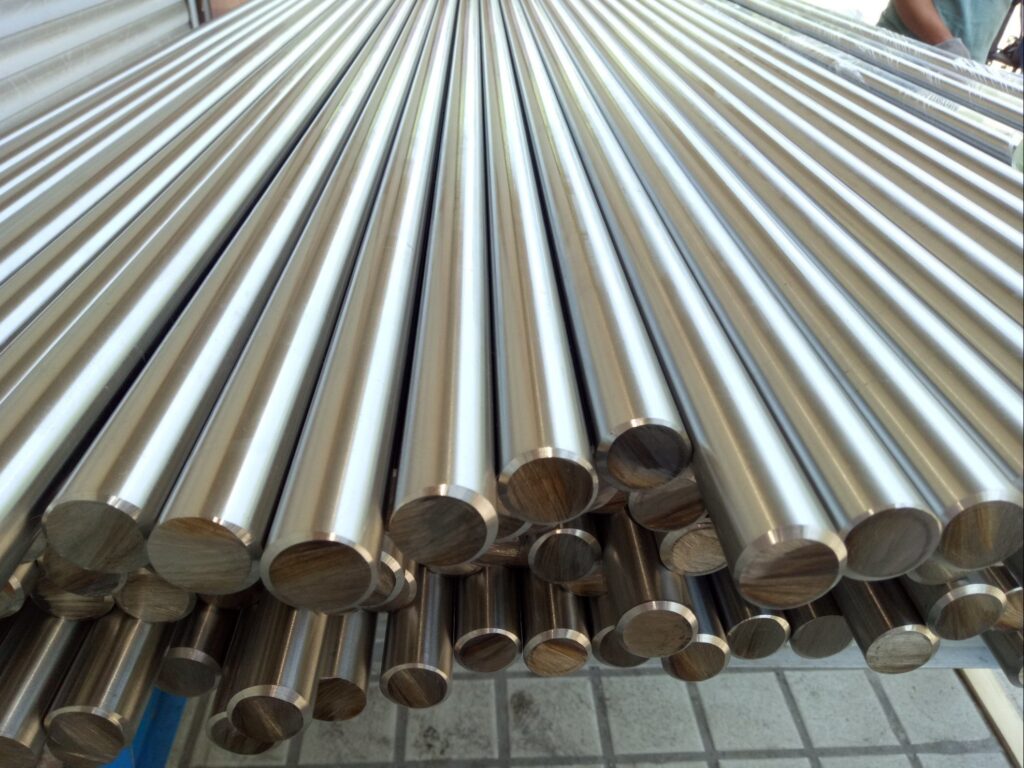

Sanjivini Steel Center is one of the leading manufacturers, suppliers, and exporters of stainless steel 416 round bar in India. Grade 416 stainless steel alloys belong to the martensitic class. This grade of alloy is freely machineable. There are several benefits to using 416 stainless steel round bar, even though it costs 15% to 20% more to machine than it does using conventional techniques. For instance, in addition to faster machining, the producer can expect a bigger cut of the 416 stainless steel rods.
Furthermore, tiny chips prolong the life of these steels and make machining easier. Given that the ASTM A479 UNS S41600 hex bar falls under the free machining alloy category, it is possible to harden this specific grade of stainless steel. By applying a heat treatment to the ASTM A276 type 416 flat bar, which enhances the alloy’s increased strength and hardness characteristics, the alloy can be efficiently toughened. Because of its highly tempered disposition, grade JIS SUS 416 black bar is easily employed due to its reasonable economics and ready machinability.
This martensitic DIN 1.4005 square bar has superior machining qualities when compared to various traditional austenitic stainless steel grades. Having said that, the AISI 416 threaded bar would lose out on a crucial characteristic like corrosion resistance because of its excellent machining qualities. These grades offer a moderate level of corrosion resistance, however, not as high as genuine alloys. Grades of stainless steel with high sulfur content and free machining, such as SS 416 bright bar, are generally not recommended for use in maritime environments or other situations where exposure to chloride is possible.
Stainless Steel 416 Round Bars are widely used across various industries due to their versatility and excellent properties. Here are some common applications:
Round bars made with 416 stainless steel specifications. For a prompt quote, please use the contact button if any specifications are not listed here.
Material | Stainless Steel 416 |
Size Tolerances | h10 and h11 |
Heat Treatment | Annealed, Solution Annealed |
Size range | 12 mm–46 mm (1/2 inch–1 1 ¾ inch) |
Chamfering | Available in 30°, 45°, & 60° through fully automatic, both-end chamfering machine |
Flat Bar Size Range | Thickness: 2–100mm/Width: 10–500mm |
Crack Test | Magnetic Particle Inspection (MPI) |
Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
Tolerance | H8, H10, H9, H11, H12, K10, H13K9, K12K11, or as per clients’ requirements |
Surface Finish | Cold (bright) drawn, hot rolled, centerless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit-rolled edge, Polish, Grinding, Centerless Ground & Black |
Available Forms | Threaded, Profiles, Rings, Round Rod, Rod, Channel, Rectangle, Precision Ground, Blocks, Round, Triangle, Hollow, Half Round, Ingot, Square, Hex (A/F), Rectangle, Billet, Forging etc. |
Manufacturing Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged |
STANDARD | WERKSTOFF NR. | UNS | JIS | EN | BS |
SS 416 | 1.4005 | S41600 | SUS 416 | X12CrS13 | 416S21 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 416 | 0.15 max | 1.25 max | 1.0 max | 0.06 max | 0.15 min | 14.00 - 12.00 | 0.6 | - | - |
Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
8.0 g/cm3 | 1454 °C (2650 °F) | Psi = 75000 , MPa = 515 | Psi: 30000 , MPa: 205 | 35 % |
Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
8.0 g/cm3 | 1454 °C (2650 °F) | Psi = 75000 , MPa = 515 | Psi: 30000 , MPa: 205 | 35 % |
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
