LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA
LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA

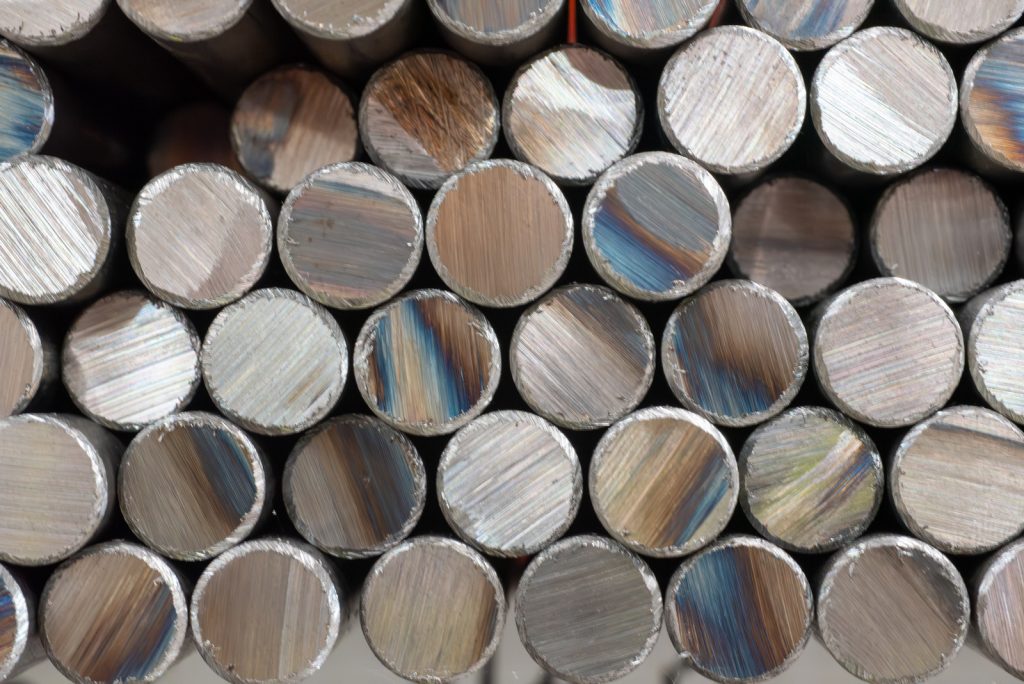

Sanjivini Steel Center is recognized for having a creative and novel approach to the provision of industrial steel. It is one of the most well-known organizations that manufactures and supplies Monel 400, a nickel-based superalloy, is known for its ductility. As a result, Monel 400 Rod can be shaped into many different shapes, including round, flat, hex, and square. This superalloy Monel 400 Flat Bar has excellent resistance to chlorine-based chemicals such as fluorine hydrogen chloride, dry chlorine, and hydrogen fluoride gases. Monel 400 round bars can be used in a variety of industries, including marine engineering and the pulp and paper industry, because they are resistant to chlorine stress corrosion.
The Alloy 400 Rod, as one of the few materials that can handle and withstand hydrofluoric acid, is well-known for its use in applications involving the production of this particular acid. The Monel 400 Hex Bar has exceptional mechanical qualities across a wide temperature range, from subzero to around 1020° F. Its primary qualities are good strength and toughness.
Monel 400 Round Bar are widely used across various industries due to their versatility and excellent properties. Here are some common applications:
Standard Specification of Monel Alloy 400 Round Bar
| Specification | ASTM B164 / ASME SB164 |
|---|---|
| Square bar size | 4 to 100mm |
| Section | 3.0 to 12.0mm thickness |
| Round bar size | Diameter: 3-~800mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2" to 495mm Diameter |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Technique | Monel 400 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
