825 Flanges

LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA

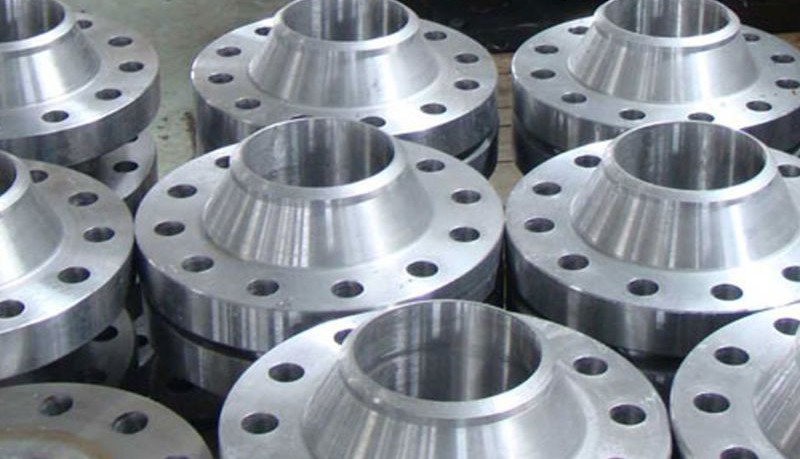

Incoloy 825 Flanges

LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA

Inconel 825 Flanges

ANSI B16.5 Inconel 825 Plate Flange, Nickel Alloy 825 Flange, ASTM B564 Alloy 825 Flange, 2.4858 Flanges, Inconel 825 Blind Flange, Incoloy 825 Flanges, UNS N08825 Flanges, and Incoloy 825 Flange Manufacturer in Mumbai, India are some of the various forms of Incoloy Alloy 825 Flanges that are available.

The well-known Sanjivini Steel Center is a reputable and well-known manufacturer and supplier offering a large selection of Incoloy 825 Flanges in different grades and specifications. Our customers throughout the world get highly efficient and high-performing Inconel UNS N08825 Flanges from us at incredibly low costs. Our company produces all kinds of flanges in different grades, sizes, norms, and specifications in accordance with industry expectations. An alloy with a nickel base and a number of other ingredients is called Incoloy 825. This material is used to make Incoloy 825 flanges. Because the material can survive such harsh conditions, they are used in high-heat and wear-and-tear operations. These flanges can be used in reducing circumstances with high concentrations of phosphoric and sulfuric acid since they are resistant to chlorine ions. These Incoloy have a high level of resistance to sulfuric and phosphoric acids.

Best Price on Alloy 825 Flange, Nickel Alloy 825 Long Weld Neck Flanges, Inconel 825 RTJ Flanges Stockist, Inconel 825 Weld Neck Flanges, ASTM B564 Incoloy 825 Flanges, ASME SB564 Incoloy 825 Socket Weld Flanges, Incoloy® Alloy 825 SWRF Flanges, Inconel 825 Industrial Flanges, Inconel 825 Slip-on Flange Supplier in Mumbai, India (India).

It can also tolerate much greater temperatures, which makes it useful for a wide range of applications. Industries that use Incoloy UNS N08825 Flanges include those in the construction, shipbuilding, metallurgy, bitumen upgraders, petrochemicals and acids, oil and gas, chemical, and nuclear power (mostly seamless). Because of their superior mechanical properties, Incoloy 825 flanges are preferred by many building sectors. Snajivini Steel Center is aware of its customers’ expectations, and we satisfy them by providing Incoloy 825 Flanges that are precisely sized, flawless, and free of defects. In order to guarantee client satisfaction and accurate manufacture, we inspect every flange before to shipment. Several quality tests are carried out by Incoloy UNS N08825 Flanges while being observed by our quality assurance staff. Each manufacturing and testing process is supervised by experts to ensure the

The Inconel 825 BS 10 Table D Flange, Inconel 825 Flanges Manufacturer in India, Inconel 825 Flanges Supplier in India, and Inconel 825 Flanges Stockist in India are all examples of Inconel 825 Flanges.

At Sanjivini Steel Centre, we offer Incoloy 825 Flanges suitable for various

Numerous industries and applications use our Incoloy 825 Flanges. Here are a handful of them:

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals

Specification Chart Of Incoloy 825 Flanges

Specification	ASTM B564 / ASME SB564
Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production Technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Equivalent Material Grade of Alloy 800 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T

Equivalent Material Grade of Alloy 825 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T

Mechanical Properties of Incoloy 825 Forged Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Manufacturing Standards / Pressure Rating of Incoloy 825 Flanges

ASME/ANSI B 16.5	Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Slip on Flange, Threaded Flange, Welding Neck Flange,
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

825 Incoloy Pipe Flange Dimensions

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)	ASME B1.20.1, Pipe Threads, General Purpose ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250 ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 ASME B16.11, Forged Fittings, Socket Welding and Threaded ASME B16.25, Buttwelding Ends ASME B16.36, Orifice Flanges ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60 ASME B31.1, Power Piping ASME B31.3, Process Piping ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Various Types of Incoloy 825 Flanges

INSPECTION TEST REPORTS :

PACKING :

SPECIALS :

INSPECTION TEST REPORTS :

PACKING :

SPECIALS :

GRADES AVAILBALE
