LEADING MANUFACTURER, EXPORTER AND SUPPLIER IN INDIA

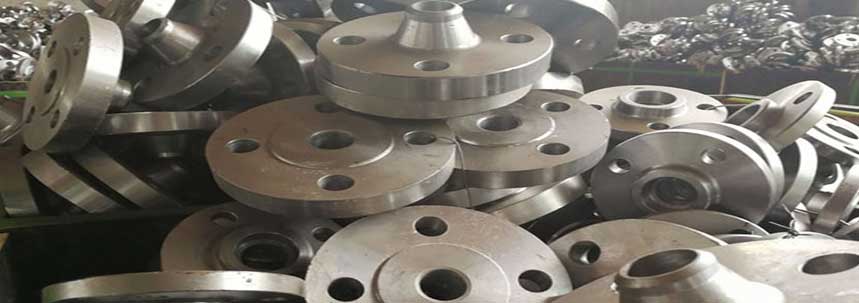

Sanjivini Steel Center supplies Incoloy 330 Flanges to meet customer needs. For industrial heating furnaces, retorts, muffles, conveyor systems, baskets and containers, and other fixtures, Inconel 330 Flanges are a fantastic choice because of their strength and resilience against corrosion even at elevated temperatures. Inconel 330 Flanges are an alloy made of silicon, nickel, chromium, and iron that are frequently employed in a variety of heat-treating procedures. Inconel 330 flanges can be produced both hot and cold (between 1750 °F and 1200 °F). Additionally, we offer our customers a variety of sizes and shapes in which to purchase these Incoloy 330 flanges.
Inconel 330 flanges are useful in the thermal, chemical, and petrochemical industries as well as in the power generation sector. Inconel 330 Flanges have been produced on a large scale for a long time with the use of advanced technology and expert designs, all without sacrificing the quality of the final product.
Alloy 330 Screwed/Threaded Flanges, Inconel 330 Reducing Flanges, Inconel 330 Ring Type Joint Flanges, 330 Incoloy Alloy 330 Orifice Flanges, 330 Spectacle Blind Flanges, and so on are among the Inconel 330 flanges that Sanjivini Steel Center offers. Watertight systems are created throughout the pipe evaluation process using Incoloy UNS N08330 flanges, which are crucial in the food, beverage, food processing, and textile sectors. In India, we have been the top producers, distributors, and stockists of these Incoloy 330 Flanges.
Numerous industries and applications use our Incoloy 330 Flanges. Here are a handful of them:
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 330 | 1.4886 | N08330 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Sn | Pb |
| 330 | 0.08 max | 2.00 max | 0.75-1.50 | 0.03 max | 1.00 max | Balance | 34.0-37.0 | 17.0-20.0 | 0.025 | 0.005 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 330 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
|---|
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
