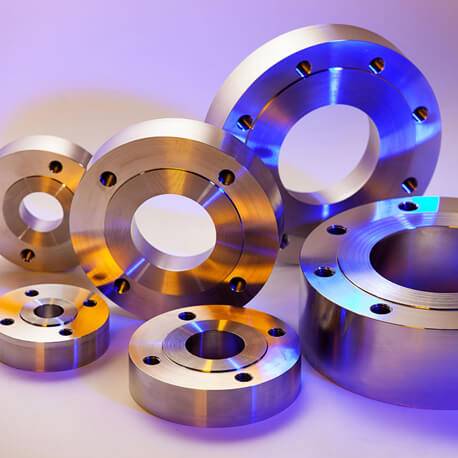

Sanjivini Steel Centre is a leading supplier and manufacturer of Duplex Steel UNS S31803 Flanges in India, offering high-quality, corrosion-resistant flanges for various industrial applications. Duplex Steel UNS S31803, also known as the workhorse grade of the Duplex family, is a balanced alloy of Austenite and Ferrite, containing approximately 40–50% ferrite after annealing.
With a composition of 22% chromium, 3% molybdenum, and 5–6% nitrogen, this material provides exceptional strength, superior corrosion resistance, and an extended lifespan compared to other stainless steel grades. Our UNS S31803 Duplex Steel Flanges are widely used across industries such as oil and gas exploration, chemical processing, power plants, seawater desalination, flue gas desulfurization, seawater pumps, architectural applications, and the pulp and paper industry.
These flanges ensure high durability, excellent mechanical properties, and resistance to pitting, crevice corrosion, and stress corrosion cracking in harsh environments. As a trusted supplier of Duplex Steel UNS S31803 Forged Flanges, Sanjivini Steel Centre is committed to providing premium-quality products that meet international standards like ASTM, ASME, ANSI, and DIN.
Our extensive range of Duplex Steel Flanges, including Slip-On, Weld Neck, Blind, Socket Weld, Threaded, and Lap Joint Flanges, caters to the diverse needs of industries requiring high-performance solutions. With years of experience and a customer-centric approach, we have established ourselves as a top supplier of Duplex Steel UNS S31803 Flanges in India and globally. Contact Sanjivini Steel Centre today for high-quality, precision-engineered Duplex Flanges designed to enhance the efficiency and longevity of your piping systems.
UNS S31803 Pipe Flanges exhibit superior resistance to intergranular corrosion, high yield strength, good weldability, and resistance to sulfide stress corrosion, as well as superior resistance to chloride pitting and crevice corrosion when compared to other austenitic grades. It can only be used in temperatures lower than 600 F. While its oxidation resistance is good at high temperatures, exposure to temperatures exceeding 300 degrees Celsius can cause embrittlement. It is susceptible to embrittlement at 475°C if left exposed for two hours. In situations with chlorination, it can be used as an alternative to regular stainless steels to prevent corrosion. When producing and manufacturing our items, we only use top-notch materials. Offerings from Sanjivini Steel Center
Numerous industries and applications use our Duplex Steel S31803 Flanges, Here are a handful of them:
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, S31803 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 |
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex Steel S31803 | S31803 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S31803 | 0.030 max | 2 max | 1 max | 0.030 max | 0.020 max | 22 - 23 | 3 - 3.50 | 4.50 - 6.50 | 0.14 - 0.20 | Bal |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
