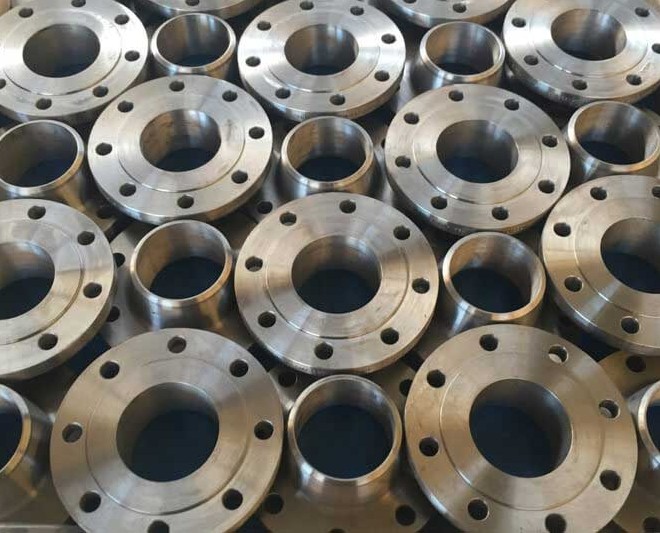

Sanjivini Steel Center has made a solid reputation for itself in the industry with its fantastic product selection and first-rate customer support. We use the best resources and technology available during the production process to guarantee that every one of our products meets or exceeds international standards. Dependability and quality are the top priorities when it comes to our Incoloy UNS N08811 Flanges. Incoloy 800HT flanges are made of nickel-chromium iron alloys and offer exceptional strength and toughness in adverse circumstances. Flanges are resistant to corrosion from crevices and cracking caused by chloride stress. Its creepy characteristics, stress rupture, and intergranular corrosion are also improved. There are several methods used to weld these flanges. Sanjivini Steel Center provides a distinctive range of flanges with superior characteristics and attributes to satisfy the requirements and wants of our esteemed customers.
Industrialists enjoy our Incoloy UNS N08811 Flanges because of their great features and advantages. There are many different sizes and shapes available for Alloy 800HT flanges, such as Slip-On, Blind, Weld Neck, Socket Weld, Orifice, Spectacle, Screwed/Threaded, Reducing, Ring Type Joint, and more. In order to satisfy customer demands, Sanjivini Steel Center provides Inconel 800HT Flanges, also referred to as Incoloy UNS N08811 Flanges, in sizes and shapes that can be customized.
Numerous industries and applications use our Incoloy 800HT Flanges. Here are a handful of them:
Specification | ASTM B564 / ASME SB564 |
---|---|
Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Production Technique | Forged, Heat treated and machined |
Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
PRESSURE CLASS | PN 2.5 TO PN 40 |
BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
PRESSURE CLASS | PN 2.5 TO PN 400 |
BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
TABLE | D, E, F, H |
DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
PRESSURE CLASS | PN 6 TO PN 100 |
AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME) |
|
---|
Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab reports, Destructive Test Report, Non Destructive Test Reports
Packing In Wooden Boxes, Plastic Bags, Steel Strip Bundled, or as per Customers Requests
Sizes and Specifications other than above can be manufactured on request
